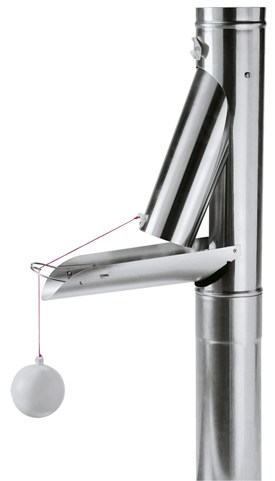

Rainwater pipe flap

	Dimension/length in mm	Zinc
	60	62801
	75	62802
	76	62803
	80	62804
	85	62805
	87	62806
	100	62810
	120	62812
	to plug in *as long as stock lasts



Rainwater pipe flap with sieve

	Dimension/length in mm	Zinc
	75	62822
	76	62813
	80	62814
	87	62816
	100	62818
	120	62820
	Ersatzsieb 100	54222
	to plug in, *stainless steel sieve 1.5 mm additional accessories on request



Rainwater pipe flap

	Dimension/length in mm	Zinc
	75	62855
	80	62856
	100	62858
	120	62859
	to plug in



Water collector with hose adapter set

	Dimension/length in mm	Zinc
	76	62675
	80	62676
	87	62677
	100	62678
	120	62679
	to plug in, with installation set, 1 inch



Foliage retainer with leaf cage

	Dimension/length in mm	Zinc
	76	62794
	80	62795
	87	62796
	100	62797
	with removable leaf cage



Anti-syphon trap

	Dimension/length in mm	Zinc
	100	54204
	stainless steel 1.4301, protection against odours and rodents, with zinc cover



Sliding sleeve

	Dimension/length in mm	Zinc
	76	62735
	80	62736
	87	62737
	100	62738
	120	62739
	to plug in



Vertical pipe cap high

	Dimension/length in mm	Zinc
	76/115	62828
	80/100	62829
	80/115	62830
	80/150	62832
	87/115	62838
	87/150	62840
	100/115	62846
	100/150	62848
	120/150	62850
	120/180	62852
	to put on, with collar



Vertical pipe cap small

	Dimension/length in mm	Zinc
	76/90	62699
	60/115	62700
	76/115	62701
	76/150	62710
	80/115	62702
	80/150	62711
	87/115	62703
	87/150	62712
	100/115	62704
	100/150	62713
	120/140	62705
	120/150	62706
	120/180	62714
	150/180	62715
	to put on, with collar



Conical adapter

	Dimension/length in mm	Zinc
	100/60	62825
	*can be adjusted by cutting to the following diameters: 100/76, 100/80, 100/87



Reducer

	Dimension/length in mm	Zinc
	76/60	62690
	80/60	62688
	87/76	62691
	100/76	62695
	100/80	62689
	100/87	62692
	120/100	62693
	150/120	62694

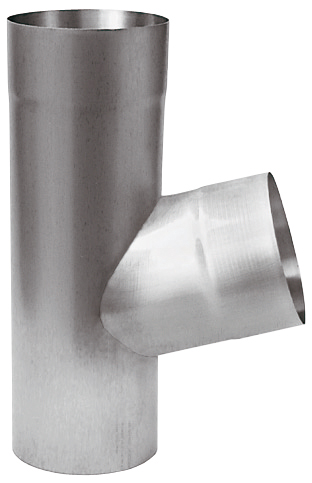

Branch pipe 60°

	Dimension/length in mm	Zinc
	50/50	62943
	60/60	62944
	76/60	62945
	76/76	63033
	80/60	62947
	80/80	62948
	87/76	62977
	87/80	62978
	87/87	62979
	100/60	62980
	100/76	62981
	100/80	62982
	100/87	62983
	100/100	62984
	120/100	62985
	120/120	62986
	60/50, 76/50, 80/50, 80/76, 87/50, 87/60, 100/50, 120/50, 120/60, 120/76, 120/80, 120/87 on request branch pipes 45° and 87° on request



Branch pipe 72°

	Dimension/length in mm	Zinc
	50/50	62949
	60/60	62950
	76/60	62951
	76/76	63021
	80/60	62955
	80/80	63023
	87/60	63027
	87/76	63024
	87/80	63025
	87/87	63026
	100/60	63970
	100/76	63971
	100/80	63972
	100/87	63973
	100/100	63974
	120/100	63975
	120/120	63976
	60/50, 76/50, 80/50, 80/76, 87/50, 87/60, 100/50, 120/50, 120/60, 120/76, 120/80, 120/87 on request branch pipes 45° and 87° on request



Connection sleeve

	Dimension/length in mm	Zinc
	60	62740
	76	62741
	80	62742
	87	62743
	100	62744
	120	62745
	to plug in



Continuous bead

	Dimension/length in mm	Zinc
	75/80	62864
	85/90	62867
	100	62870
	120	62872
	150	62875
	for soldering price per kg, 5 pieces = 1 kg



Half bead

	Dimension/length in mm	Zinc
	60	62881
	76	62884
	80	62885
	87	62887
	100	62890
	120	62892
	150	62893
	for soldering



Vent cap

	Dimension/length in mm	Zinc
	50	62760
	60	62761
	76	62762
	80	62763
	87	62764
	100	62765
	120	62766
	to plug in
